Product Description
Cisco 2960 Series 48 Ports Gigabit Ethernet POE 370W 4 x SFP LAN Base Managed Switch WS-C2960S-48LPS-L
The Cisco Catalyst 2960S-48LPS-L Ethernet Switch is the leading Layer 2 edge, providing improved ease of use,
highly secure business operations, improved sustainability, and a borderless network experience. The Cisco Catalyst
2960-S Switch includes new Cisco FlexStack switch stacking capability with 1 and 10 Gigabit connectivity, and Power
over Ethernet Plus (PoE+) with the Cisco Catalyst 2960-S Switch offering fast Ethernet access connectivity and PoE
capabilities. The Cisco Catalyst 2960-S is fixed-configuration access switches designed for enterprise, mid-market,
and branch office networks to provide lower total cost of ownership.
| Product Code | WS-C2960S-48LPS-L |
| Enclosure Type | Rack-mountable - 1U |
| Feature Set | LAN Base |
| PoE capacity | 370W |
| Uplink Interfaces | Four 1G Small Form-Factor Pluggable(SFP) |
| Downlink Ports | 48 × Ethernet 10/100/1000 PoE+ ports |
| Expansion Slot(s) | 1 (total) / 1 (free) x Stacking Module |
| Switching capacity | 176 Gbps |
| Forwarding/Filtering Rate: | 77.4 Mpps |
| DRAM | 128 MB |
| Flash Memory | 64 MB |
| Dimensions | 44.5 × 38.6 × 4.5 cm |
| Package Weight | 10.65 Kg |
Figure 1 shows the front panel of the WS-C2960S-48LPS-L.

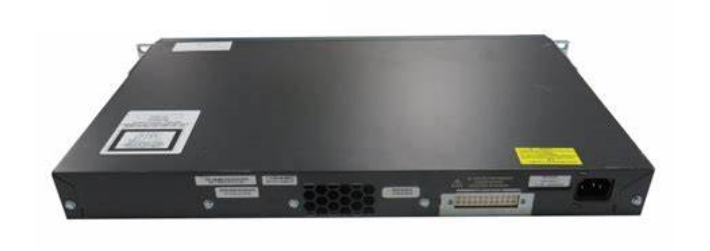

Figure 2 shows the back panel of the WS-C2960S-48LPS-L.
The Cisco Catalyst 2960-S Series Switches are fixed-configuration Gigabit Ethernet switches that provide
enterprise-class Layer 2 switching for campus and branch access applications. They enable reliable and secure business
operations with lower total cost of ownership through a range of innovative features including FlexStack, Power over
Ethernet Plus (PoE+), and Cisco Catalyst SmartOperations.
